- MSRP: $598,712
-
Sleeps 6
-
3 Slides
-
Bath and a HalfRear Bath
-
44ft Long
-
36,900 lbs

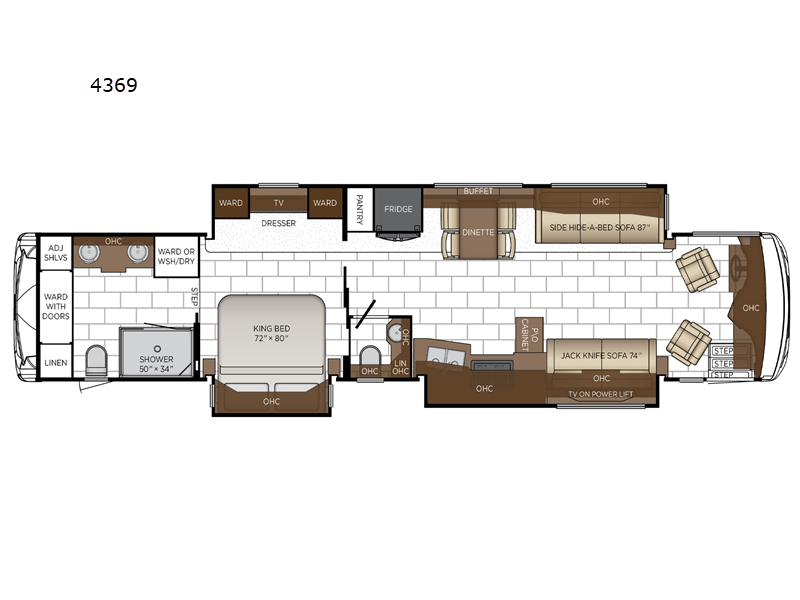

4369 Floorplan
Specifications
Sleeps | 6 | Slides | 3 |
Length | 43 ft 10 in | Ext Width | 8 ft 6 in |
Ext Height | 13 ft 1 in | Int Height | 6 ft 11 in |
Hitch Weight | 15000 lbs | GVWR | 45600 lbs |
Dry Weight | 36900 lbs | Cargo Capacity | 8700 lbs |
Fresh Water Capacity | 105 gals | Grey Water Capacity | 75 gals |
Black Water Capacity | 55 gals | Furnace BTU | 50000 btu |
Fuel Type | Diesel | Engine | Cummins L 8.9 |
Chassis | Freightliner XCR Tag Axle | Horsepower | 400 hp |
Fuel Capacity | 100 gals | Wheelbase | 281 in |
Available Beds | King | Torque | 1250 ft-lb |
Refrigerator Type | Whirlpool | Refrigerator Size | 19.7 cu ft |
Convection Cooking | Yes | Cooktop Burners | 3 |
Shower Size | 50" x 34" | Number of Awnings | 1 |
Axle Weight Front | 15600 lbs | Axle Weight Rear | 20000 lbs |
Axle Weight Tag | 10000 lbs | LP Tank Capacity | 32 gals |
Water Heater Type | Continuous | AC BTU | 45000 btu |
TV Info | LR 50" Samsung LED 4K TV on Televator, BR Samsung LED 4K | Awning Info | Girard G2000 Power w/Wind Sensor, Remote, and LED Lights |
Washer/Dryer Available | Yes | Gross Combined Weight | 60600 lbs |
Shower Type | Shower w/Seat | Electrical Service | 50 amp |
Description
Newmar Ventana Class A diesel motorhome 4369 highlights:
- Master Suite
- Bath and a Half
- Pull-Out Cabinet
- USB Outlets
- 19.7 Cu. Ft. Whirlpool Refrigerator
Experience a home away from home with this motorhome! Two can get ready at once in the full rear bathroom with the dual sink vanity, plus it has a 50" x 34" shower with a seat, a linen closet, a wardrobe with doors, adjustable shelves, and even washer and dryer prep. The master suite has access to the bathroom, a king bed slide, and a dresser with wardrobes on either side and a Samsung LED 4K TV. You can prepare your best meals with the three burner recessed gas cooktop, pull-out cabinet, and large pantry then enjoy them at the free-standing dinette with chairs. Now that your belly is full, head to either the 87" hide-a-bed sofa or the 74" jackknife sofa while a movie plays on the 50" Samsung LED 4K TV on a power lift!
Newmar's most flexible coach is found with the Ventana motorhome! The STAR foundation improves strength and durability, as well as a quieter and more stable ride than any other Class A diesel coach. The Freightliner chassis comes standard, or you can choose the optional Spartan chassis. Each model is constructed with gelcoat fiberglass exterior sidewalls and front and rear caps, along with Polar Pak R19 batten insulation in the roof so you can enjoy four seasons of fun. Some of the convenient cockpit features include an Xite dash radio with a Nav-N-Go navigation system, six-way power captain's seats, and the Mobileye lane tracking and lane departure system for added safety. You'll love the luxurious look of the porcelain tile floor and three stylish decor options, and each floorplan includes polished solid surface countertops in the kitchen, bath, and bedroom! The exterior is outfitted with the industry-exclusive Full-Paint Masterpiece Finish, Smart Level hydraulic leveling jacks, Silverstar ultra headlight bulbs, and an optional entertainment center!
Features
Standard Features
Exterior
Standard
- Full-Paint Masterpiece Finish™ with Diamond Shield Protection on Front Cap
- Convex Exterior Mirrors with Remote Control, Defrost and Turn Signal Indicators
- Chrome Exterior Mirrors
- Entrance Door with Automatic Step
- Rear Hitch for Towing Car
- Assist Handle at Entrance Door
- Mud Flaps
- Rear Protective Tow Guard with Stainless Steel Newmar Letters
- Undercoating
- Smart Level Hydraulic Leveling Jacks with Bluetooth Compatible Touch Pad
- Stainless Steel Exterior Trim Pieces on Front Cap and Grill Area
- Painted Power Baggage Door Locks, Keyless Entrance Door with Touch Pad & Doorbell
Optional
- Chrome Power Baggage Door Locks
- Flag Pole Bracket
- Rear Ladder
- Storage Tray 26 X 91 Non-Power, Location Bay 2
- Storage Tray 32 X 91 Non-Power, Location-Bay 2
- Storage Tray 43 X 56 Non-Power, Location-Bay 3
- Storage Tray 43 X 56 Non-Power, Location-Bay 4
Construction
Standard
- Gelcoated Fiberglass Exterior Sidewalls, Front and Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, 16" on Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
- Automatic Mechanical Lock Arms on Slideout Rooms-Scissor Style
- Polar Pak R19 Batten Insulation in Roof
- Fiberglass Roof and Integrated Gutter Rail
- Egress Door with Ladder System
Chassis
Standard
- Aluminum Wheels
- Cruise Control
- Comfort Drive™ Steering With Adjustable Control
- Manual Tilt and Telescope Steering Column with VIP Smart Wheel
- Recessed Fuel Fills with Crossover to Fill from Either Side
- Back-Up Alarm
- Anti-Lock Braking System
- Chassis Battery Disconnect
- V-Ride Drive Axle Suspension on Freightliner Chassis
- Glass Dash Instrument Panel
- Dash Panel Optiview
- Headlights Automatic High Beam
- Mobile Eye Tracking and Lane Departure Warning System
- Steering Wheel Nine Function Switch Pod in Center on Spartan Chassis
- Valid Digital Glare Free Dash on Spartan Chassis
- Freightliner® 380Hp on 35-38’ Floor Plans
- Freightliner® Tag Axle 400Hp on 40-43’ Floor Plans
- Tire Pressure Monitoring on Chassis
Optional
- Spartan 380Hp on 35'-38'’ Floor Plans
- Spartan Tag Axle 400Hp on 40-43’ Floor Plans
- OnGuard Collision Mitigation Adaptive Cruise System with Adjustable Following Distance Control-Freightliner or Spartan
Mechanical and Electrical
Windows, Awnings, & Vents
Standard
- Frameless Double-Pane Tinted Safety-Glass Windows
- Fan-Tastic® Vent with Rain Sensor in Kitchen and Bathroom
- Skylight Above Shower
- Girard G2000 Power Side Awning with Wind Sensor, Remote Control & LED lights
- Slideout Awning Covers
- One Piece Tinted Windshield
Optional
- Carefree Window Awning Pkg of (3), 1-Bedroom, 1-Off Door Side Livingroom, 1-Door Side Livingroom
- Kitchen Window*
- Two Nova Side Awnings
- Bunk Windows*
Air Conditioning & Heating
Standard
- Two-15M Penguin™ Heat Pump Air Conditioners
- Three-15M Penguin Heat Pump Air Conditioner on 43’ Floor Plans
- Propane Gas Furnace with Ducted Heat on 34’-40’ Floor Plans
- Dash Heater and Air Conditioner
- Chinook Dual Loop Heat with Continuous Hot Water on 43’ Floor Plans
- Driver & Passenger Dash Overhead Ventilation System
- Wall Mounted Sensors for Heating and Air Conditioning
Optional
- Electric Radiant Heat Installed Below Main Floor Tile
Electrical
Standard
- 8.0 kW Cummins Onan® Diesel Quiet Series Generator
- 50 Amp Electrical Service with Flexible Cord with Automatic Transfer Switch
- Four 6-Volt House Batteries on Pullout Tray on 35'-40' Floor Plans
- Eight 6-Volt House Batteries on Pullout Tray on 43' Floor Plans
- Battery Disconnect Switch for House Battery
- Automatic Generator Start on Low Battery or Temperature Setting
- 10 Watt Solar Panel to Charge Chassis Battery
- 2000 Watt Modified Sine Inverter on 35'-40' Floor Plans
- 2800 Watt Modified Sine Inverter on 43' Floor Plans
- 12 Volt Auxiliary Receptacle on Dashboard
- Emergency Engine Start Switch
- Engine Block Heater
- Exterior Security Light on Doorside
- Midship Side Turn Signals
- LED Lights Recessed in Ceiling and Underneath Overhead Cabinets
- Lights in Exterior Storage Compartments
- Manually Operated Hold-To-Run Slideout Switch
- Cable TV Connection
- Interior Courtesy Lights
- USB Charger at Dinette & Bedroom Night Stand
- USB Outlet at Dash for Drive Use
- Wireless Charging Mat Built into Dash for Driver Use
- Wireless Charging Mat Built into Passenger Console
- Spare Fuses in Chassis and House Fuse Panels
- Energy Management System
- Multiplex Lighting Control System 10.1" in Center of Coach with Interior Lighting & HVAV Controls
- Dimmable/Adjustable Reading Lights at Head of Bed
- 110 Volt Recept in Bed Overhead with Two Pass Through Ports
- 110V/USB Outlet at Head of Each Bunk Area*
- 12 Volt Recept Auxiliary on Dashboard
- Power Rewind Reel with 33’ Cord*
- Power Rewind Reel with 50’ Cord*
- Connected Solutions App
- Dash Radio, Cameras and Monitors to Power-up from both House Batteries Ignition
Optional
- Solar Prep with Six Gauge Wire Ran from the Roof to the House Battery Compartment
- Four Flexible 100 Watt Solar Panels on Roof
- Transfer Switch with Surge Protector
Plumbing & Bath
Standard
- Demand Water System
- Sewage Holding-Tank Rinse
- Water Heater Bypass System
- Dometic® 321 China Bowl Stool or Macerator Stool*
- Sentrel Acrylic Shower Walls with Glass Door
- Water Filter for Entire Unit
- Exterior Shower
- Auto Fill Water Works Compartment
- Power Water Hose Reel
- Aqua Miser Shower System
Optional
- Fold Down Shower Seat
- Hot Water Line to Generator Area*
Interior
Cabinets & Furniture
Standard
- Bermuda Glazed Maple Hardwood Face Frame Cabinets with Mitered Panel Flat Designer Doors- Matte Finish
- Concealed Hinges on Cabinet Doors
- Pullout Pantry Shelves*
- Soft Close Cabinet Drawers
- Drawer Slides Push to Release in Pantry
- Drawers with Full Extension Ball Bearing Guides
- Cooktop Cover Flush, Matching Material
- Polished Solid Surface Countertop in Kitchen with Under Mounted Stainless Steel Sink and Sink Covers
- Polished Solid Surface Countertop in Bathroom and Bedroom
- Desk with One Chair*
- Dinette Booth Williamsburg Convertible*
- Lifts on Bed Top
- Passenger Seat Work Station
- Ultrafabric Sofa and Driver/Passenger Seats
- Driver Seat with Vibrator for Mobile Eye System
- Driver/Passenger Seats with Six-Way Power, Power Lumbar and Footrest
- Plush Pillow Top Mattress
- Extended Rotation Concealed Hinge for Washer/Dryer Cabinet Door
- Mesh Cell Phone Holder at Each Bunk Bed*
- Molded Silverware Divider Tray
- Villa Comfort Fit Furniture
Optional
- Glacier Glazed Maple Hardwood Cabinets with Mitered Flat Designer Doors-Matte or High Gloss Finish
- Newport Glazed Maple Hardwood Cabinets with Mitered Flat Designer Doors-Matte or High Gloss Finish
- Bermuda Glazed Maple Hardwood Cabinets with Mitered Flat Designer Doors-High Gloss Finish
- Mattress Air R5 Radius Corner
- Buffet Dinette with Two Fixed and Two Folding Chairs
- Combination Desk with Buffet Table, Two Fixed and Two Folding Chairs
- Dinette Convertible with Two Fixed and Two Folding Chairs that Face to Window
- Dinette Euro Booth with Two Table Leaves, Removable Table Leg and Two Folding Chairs
- Two Recliners with Lampstand and Reading Lights
- Powered Theater Seating 74”
- Powered Theater Seating 84” with Reading Lights
- Powered Theater Seating 87” with Reading Lights
- Bunk Beds to Convert to Wardrobe
- Bunk Bed Drop Down Over Driver and Passenger Seats to Windshield with Bunk Ladder
Appliances
Standard
- Convection Stainless Steel Microwave with Three-Burner Recessed Gas Cooktop and Air Fryer Feature
- All Electric, Cook Flush Mount Induction on 43’ Floor Plans
- Air Horns
- Norcold® 10 Cf. Refrigerator with Stainless Steel Refrigerator Front
- Whirlpool® 19.7 Cf. on 43’ Floor Plans
- Prep for Two-Piece Washer and Dryer
- Fireplace in Living Area*
- Water Heater 10 Gallon Gas/Electric with Direct Spark Ignition on 35’-40’ Floor Plans
Optional
- Norcold® 15 Cf. Four-Door Refrigerator with Icemaker
- Norcold® 15 Cf. Four-Door Refrigerator with Icemaker with Heated Water Line
- Whirlpool® 11 Cf. Refrigerator with Two Extra Batteries, 22 gal. Propane Tank and Icemaker
- Whirlpool® 11 Cf. Refrigerator with Two Extra Batteries, 22 gal. Propane Tank
- Whirlpool® 19.7 Refrigerator with Two Extra 6 Volt Batteries and 22 gal. Propane Tank
- Splendide Two-Piece Stacked Washer and Dryer
- All Electric, Flush Mount Induction Cooktop, Whirlpool 19.7 Refrigerator, 4 Extra Batteries, 2800 Pure Sine Inverter
- Hydronic Heat on 35’-40’ Floor Plans
- Central Vacuum with Tool Kit
- 110 Volt Heat Pads for Holding Tanks
- Dishwasher in a Drawer with Stainless Steel Front Below Cooktop
- Electrical Prep for Freezer without Tray
- Beverage Center with Wine Cooler and Stemware Rack
- Fireplace
Interior
Standard
- Designer Feature Ceiling
- Tile Floor in Kitchen, Bathroom and Living Areas
- Carpeting on Slideout Floors
- MCD Window Shades
- MCD Power Shades at Windshield and Manual Shades on Driver/Passenger Side Windows
- Dash Panel Color Coordinated ABS
- Decorative Wall Art
- Inlayed Three Panel Design Interior Passage Doors
- Interior Assist Handle at Main Entry Door
- Power Stepwell Cover
- Fitted with Round Corner Non-Quilted Bedspread with Accent Pillows
- Removable Transport Pads for Under Slideout Rollers
- Waste Basket in Kitchen Base Under Sink
Optional
- Safe Located in Bedroom Wardrobe
Entertainment
Audio & Video
Standard
- Samsung LED 4K TV in Living and Bedroom Areas(TV Sizes Vary Per Floor Plan)
- Samsung 50” LED 4K TV on Televator in Living Area*
- Dash Radio with Harman/JBL 180 Watt Sound System and Subwoofer
- Xite Dash Radio with Apple CarPlay ®, 9” Dual Monitors with Nav-N-Go Navigation System
- Bose® Soundbar Sound System
- Bluetooth Microphone for Dash Radio
- Rear-View Color Monitor System with Audio
- Side-View Cameras Displayed on Rear-View Monitor Screen
- Winegard Digital Crank-up TV Antenna
- Satellite Dish Prep on Roof
- Two Bedroom Radio Speakers
- TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
- High Definition Component Wiring
- 10 Bc Fire Extinguisher, Smoke Detectors, Propane and Carbon Monoxide Detector
Optional
- SiriusXM® Satellite Capability with Antenna (Does not include monthly subscription)*
- Samsung® 43” 4K LED TV in Front Overhead
- Exterior Entertainment Center in Sidewall with Samsung® 32” 4K LED TV and Bose® Soundbar
- Exterior Entertainment Center in Sidewall with Samsung® 43” 4K LED TV and Bose® Soundbar
- Exterior Entertainment Center in Storage Compartment with Samsung® 43” LED TV and Bose® Soundbar
- Omniview NS360 Camera System*
- Universal Remote Control
- Universal Toll Module
- Prep for Ground Tripod Satellite Dish on Off Door Side with A/B Switch
- Two-19” Skyworth Monitors at Each Bunk*
- WIFI Ranger Denali/Spruce LTE
- WIFI System Everest with Aspen Interior Router
- Winegard Automatic Dome Satellite Dish-Std/HD, DIRECTV Std. and Bell Canada
- Winegard Automatic Open Face Satellite Dish-HD and Bell HD TV
- Winegard Automatic Open Face SWM Satellite Dish-DIRECTV Std/HD
- Winegard In-Motion Dome Satellite Dish-Std/HD, DIRECTV Std. and Bell Canada
- Winegard Rayzar Automatic Digital TV Antenna
*Check with dealership on floorplan availability
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Save your favorite RVs as you browse. Begin with this one!
Loading
Holiday World is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @346-476-1495 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available. Please note that 360 virtual tours are for reference of the corresponding floorplan. Actual features, colors and finishes may vary to the unit in stock. In Texas, prices exclude only tax, title, registration, and any applicable document fee.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
